If you’re looking for a straightforward, dependable way to turn electricity into motion, the squirrel cage rotor gets the job done. It uses a rotating magnetic field to induce currents in its bars, which then create torque and spin the motor—no brushes, no external rotor connections.
As you keep reading, you’ll notice how this simple idea leads to a tough design, barely any maintenance, and tons of use in pumps, fans, and factories.
Let’s dig into how the motor actually makes torque, what makes it so durable, and where this design really shines.
Core Purpose and Working Principle of the Squirrel Cage
Here’s how the squirrel cage turns alternating current into steady shaft torque.
You’ll see which parts make the motor spin, how the magnetic action works, and why the rotor always lags just a bit behind the field.
Conversion of Electrical to Mechanical Energy
When you feed three-phase AC into the stator windings, the stator creates a rotating magnetic field that sweeps around at synchronous speed.
That field cuts across the squirrel cage rotor bars. Since the bars are shorted together, currents flow in them and the end rings.
Those currents make their own magnetic field, which interacts with the stator’s field.
This interaction creates torque on the rotor shaft. The rotor speeds up until it’s just a bit slower than the rotating magnetic field.
That little speed difference is called slip. It’s what keeps the induced currents—and the torque—going.
As long as you keep supplying AC, the motor keeps producing mechanical output.
The way the rotor bars and end rings are built affects how much torque you get at startup, how efficient the motor runs, and how much heat it makes.
Role of Electromagnetic Induction
Electromagnetic induction is the real magic here. The stator’s changing magnetic field induces voltages in the rotor conductors—Faraday’s law in action.
Because the rotor is short-circuited, those voltages cause currents to flow. The amount of current depends on slip, which is the speed difference between the rotor and the field.
At startup, slip is high, so you get more current and higher starting torque. But you also get more heat and a big inrush of current.
As the rotor gets closer to synchronous speed, slip drops, so induced current and losses go down too.
This whole induction process is why we call it an asynchronous motor—the rotor never quite catches up with the field.
You don’t need brushes or slip rings in a squirrel cage, so there’s less to maintain.
Function of Rotor and Stator Interaction
The stator gives you the rotating magnetic field, and the squirrel cage rotor gives the conductive paths (bars and end rings) for the induced current.
You might think of the stator as the magnetic “driver” and the rotor as its “follower.”
Rotor bar shape and what they’re made of can tweak performance. Deep-bar or double-cage rotors boost starting torque but keep current under control.
Solid, low-resistance bars help efficiency when the motor’s running at a steady speed.
If the load demands more torque, slip increases, so the rotor draws more current and makes more torque.
When you need really precise speed control, you’re better off with a slip ring induction motor or a variable frequency drive than a plain squirrel cage.
The way the stator and rotor interact is simple and tough. That’s why you see squirrel cage motors everywhere—pumps, fans, conveyors, and just about any industrial drive.
If you want more about how these motors are built or the different classes, check out this practical guide on the squirrel cage induction motor (https://www.electrical4u.com/squirrel-cage-induction-motor/).
Design Features and Main Applications of Squirrel Cage Motors
Let’s talk about how the rotor and frame are built for strength, why these motors are so energy-efficient and easy to care for, and where you’ll find them at work.
You’ll also get a quick look at how they stack up against slip ring (wound rotor) motors.
Rotor Construction and Durability
The rotor in a squirrel cage induction motor is basically a cylinder made of stacked steel laminations, with bars of aluminum or copper shorted by end rings.
These steel laminations help cut down on eddy current losses and keep the rotor cooler during long runs.
Manufacturers often skew the bars to reduce cogging and give smoother torque when starting.
End bells and the motor housing support the rotor shaft and bearings.
A cooling fan at the back keeps friction down and pulls heat out of the laminated core.
The solid-bar rotor design means there are fewer parts to wear out compared to a wound rotor.
That’s why you get longer life and less maintenance—ideal for pumps, blowers, and conveyor belts.
Efficiency and Maintenance Benefits
Squirrel cage motors run efficiently at their rated speed. The rotor’s low resistance and stable magnetic coupling with the stator help with that.
You get good efficiency and lower energy use while running.
Most losses happen at startup, but once the motor’s up to speed, the energy conversion stays steady.
A properly sized cooling fan and good ventilation in the frame help keep things running cool.
Maintenance is pretty minimal. No slip rings, no brushes, no external resistors to fuss with.
You just need to check the bearings, look for wear on the end bells, and keep the cooling paths clear.
If you add a variable frequency drive (VFD), you can save even more energy and control speed—without adding much rotor wear.
Common Uses in Industry and Everyday Life
You’ll spot squirrel cage induction motors in fans, pumps, blowers, conveyor belts, HVAC systems, compressors, and a bunch of machine tools.
Their steady speed and simple build make them perfect for industrial drives that need high reliability.

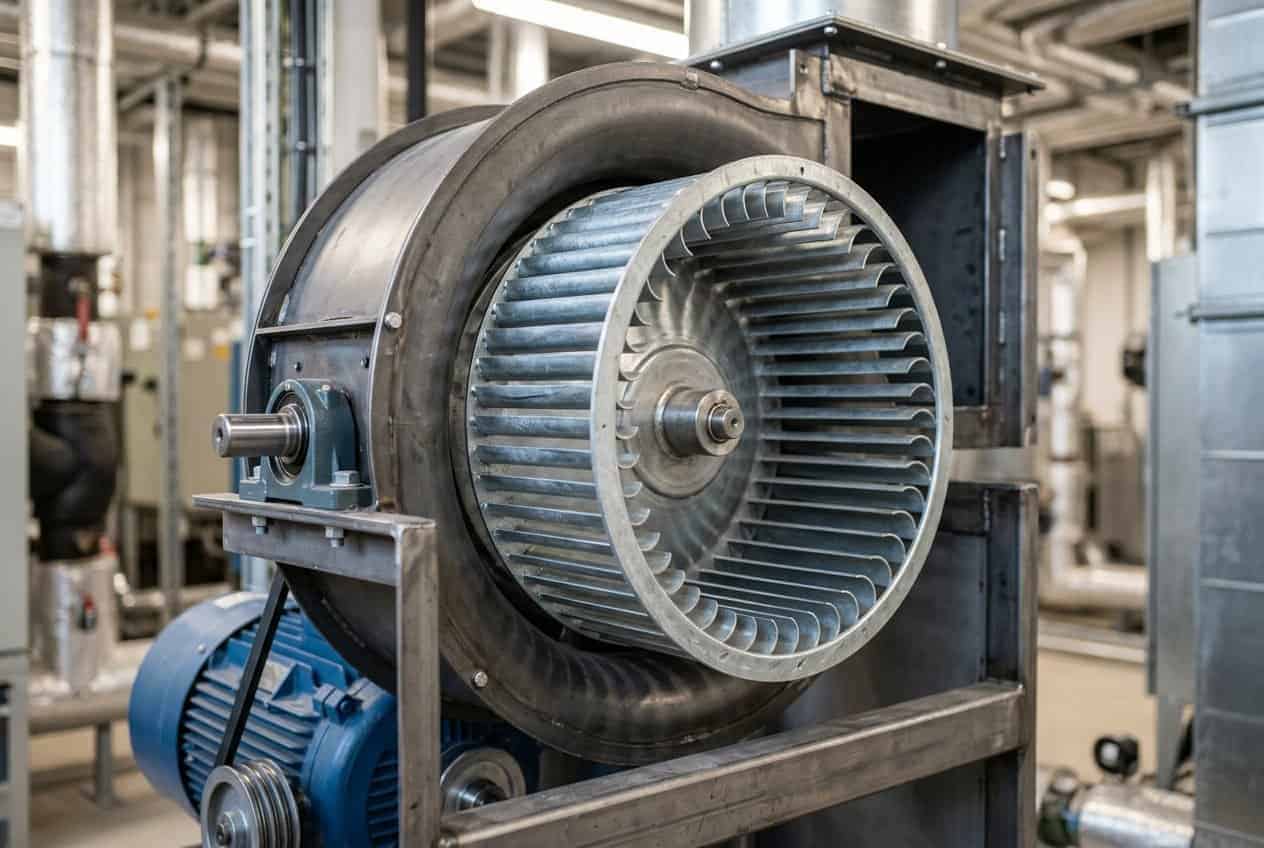

Centrifugal fans and big blowers use these motors a lot because they can run nonstop and deal with heat well.
Smaller motors power household appliances and factory equipment too.
In conveyor systems and machine tools, these motors handle long shifts with barely any downtime.
If you need variable speed, you usually just add a VFD instead of switching to a different rotor design.
Comparison: Squirrel Cage vs Slip Ring Induction Motors
Squirrel cage motors use a solid-bar rotor and don’t have any external rotor connections. That setup keeps costs down, cuts maintenance, and usually means you get pretty good efficiency during regular use.
Slip ring (wound rotor) motors, on the other hand, let you add external resistance through slip rings. This tweak helps you get higher starting torque or more control over speed.
If you want something simple and tough for fans, pumps, or conveyors—and you don’t need a ton of starting torque—just go with a squirrel cage motor. But if you need a lot of starting torque or really precise speed control and don’t want to mess with a VFD, then a slip ring motor makes sense.
Slip ring motors do cost more and need more attention because of the brushes and rings. Squirrel cage motors, meanwhile, save you time on service and cut down on energy use over the motor’s lifetime.
