Spider gears are small gears inside a differential that let your wheels turn at different speeds while still getting power. They matter for smooth cornering, traction, and quiet drivetrain operation.
Spider gears split and balance torque between the left and right axle shafts so your vehicle can move smoothly in a straight line and also turn without tire scrub. In a normal differential system, the spider gears work with the side gears, carrier, and ring and pinion to keep power flowing while the wheels rotate at different speeds.
The Core Job Inside The Differential
Spider gears manage wheel speed differences without interrupting power flow. This is important any time your drivetrain needs to keep torque moving while one wheel travels farther than the other.
Why The Wheels Need Different Speeds
When you turn, the outside wheel covers more distance than the inside wheel. A differential lets each wheel spin at its own speed, which supports smooth cornering and helps reduce wheel slip.
How Torque Moves Through The Gear Set
Torque enters through the ring gear. The carrier then transfers it into the spider gears and side gears.
This gear action spreads force between both axle shafts while keeping the drivetrain engaged.
What Happens During Smooth Cornering
During a turn, the spider gears rotate around the side gears so each wheel can match its own path. This keeps the vehicle stable and prevents the tires from dragging across the road surface.
How The Internal Parts Work Together
Spider gears do not work alone. The carrier, shafts, washers, and matching bevel gears help keep motion controlled and spread the load across the assembly.
Spider Gears And Side Gears

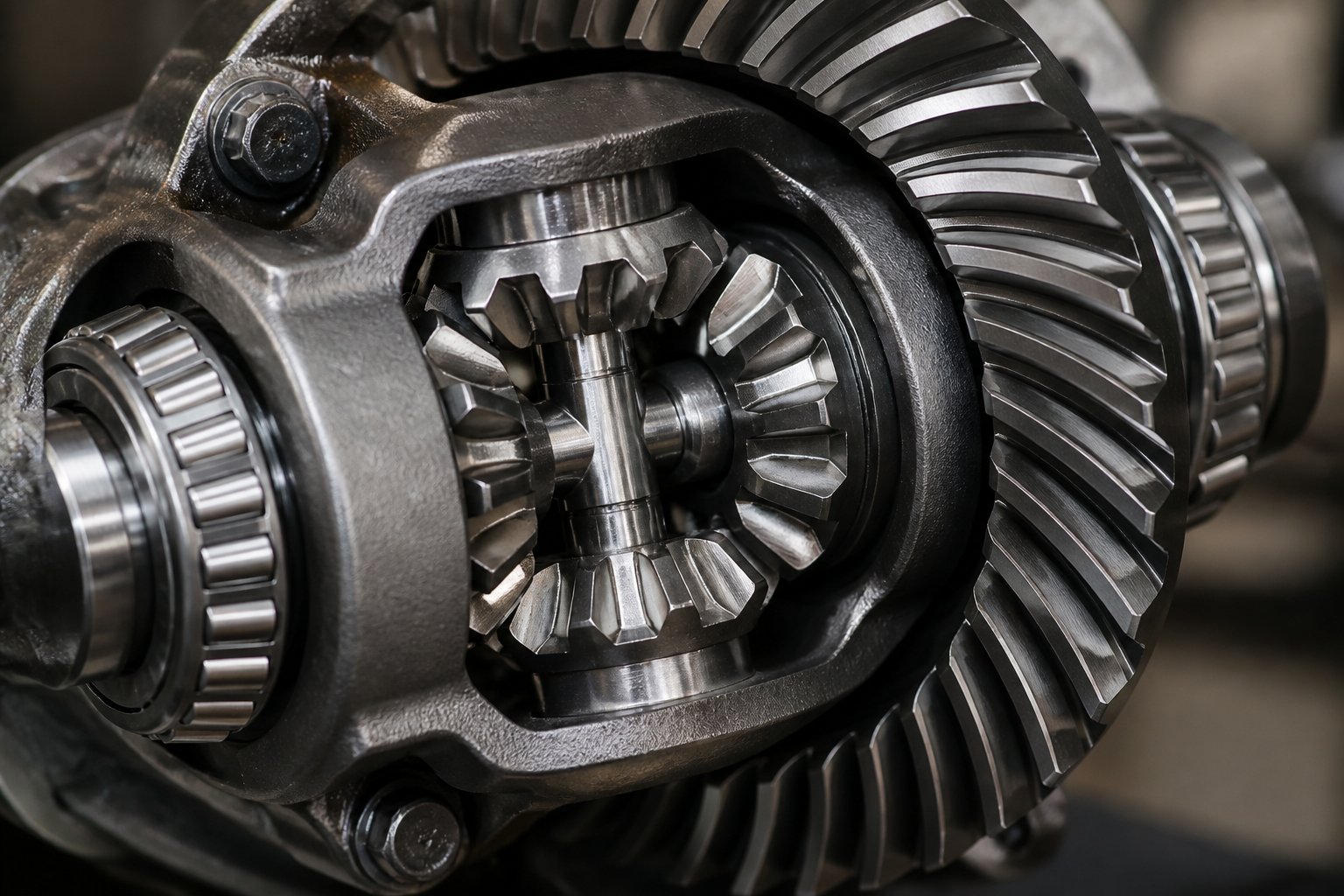

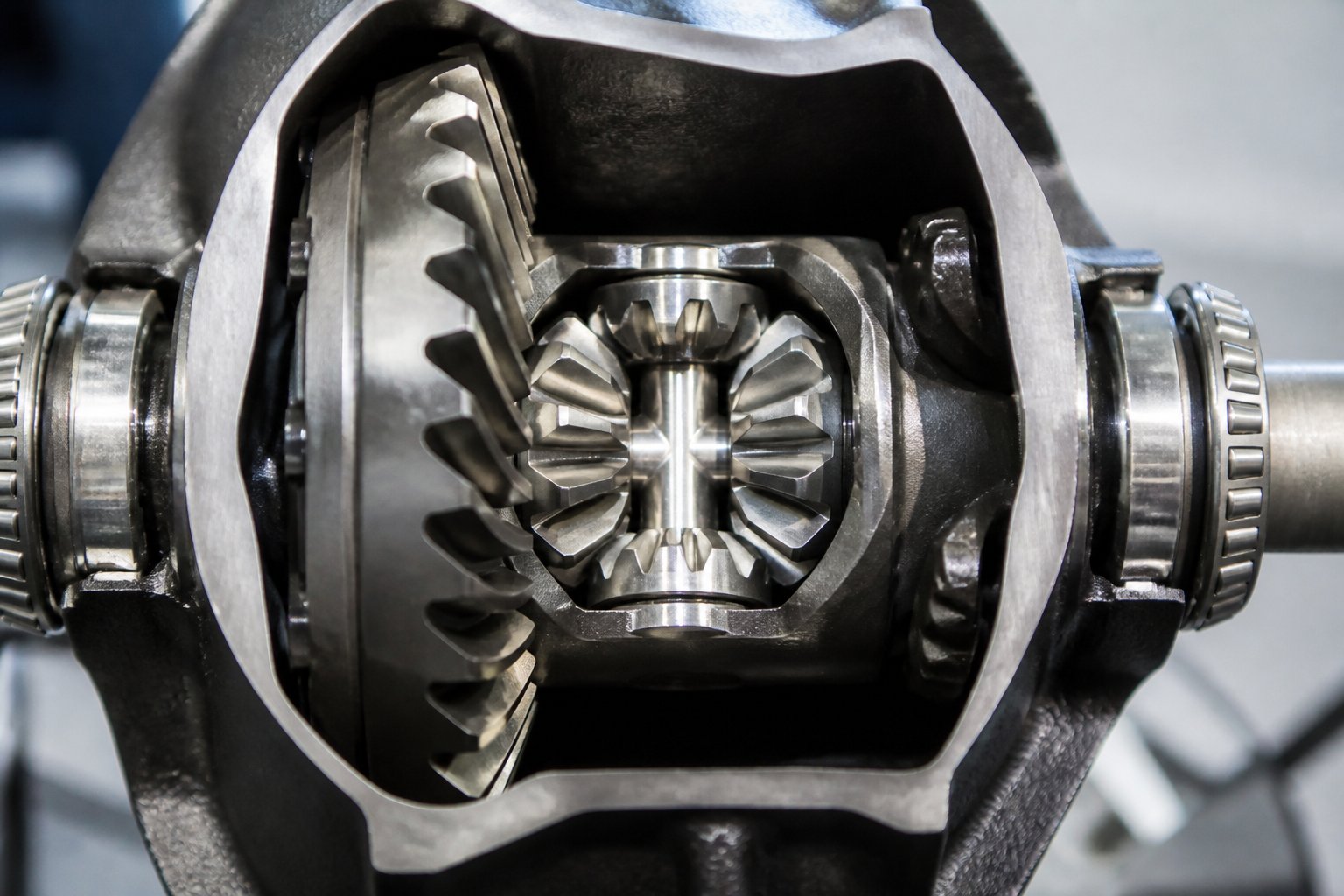

Spider gears mesh with the side gears, which connect to the axle shafts. In many designs, these parts are bevel gears that let rotational force move in a compact space inside the differential carrier.
Cross Pin Support And Rotation

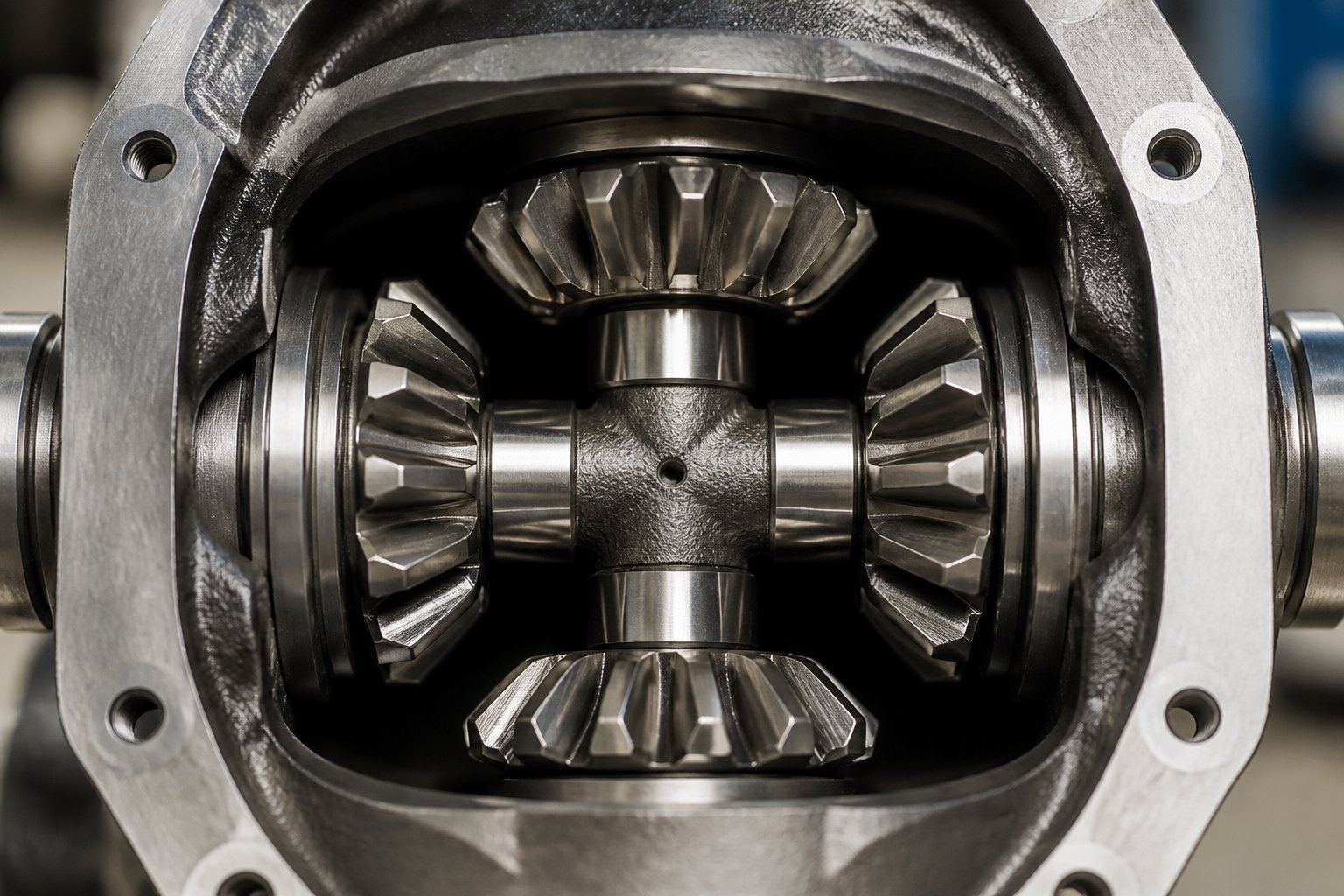

A cross shaft or cross pin supports the spider gears and gives them a center point to rotate around. Thrust washers help reduce friction and wear where the gears touch the carrier.
Connection To The Ring And Pinion
Power enters the differential through the ring and pinion set, which the driveshaft turns. The carrier turns with that motion, and the spider gears pass force to the axles or axle shafts through the side gears, much like a small planetary gear set.
When Spider Gears Move And When They Fail
Spider gears spend most of their life spinning quietly inside the differential case. When they wear out or lose proper lubrication, their movement changes fast, and you can notice symptoms in sound, feel, or handling.
Straight-Line Driving Vs Turning
On a straight road, the spider gears usually do very little work because both wheels spin at nearly the same speed. During a turn, they move more actively as they allow speed difference between the wheels.
Common Causes Of Wear And Damage
Poor lubrication causes major wear, because dry gears and washers heat up and grind. Hard launches, wheel slip, broken thrust washers, or damage to the cross pin can also damage the gears and the ring and pinion.
Noises And Symptoms To Watch For
You may hear clicking, grinding, or whining from the differential case when spider gears are worn. You might also feel shuddering in turns or notice uneven power delivery under load.
Design, Fitment, And Replacement Considerations
Not every spider gear set fits every axle. You need the right carrier style, gear layout, and ratio match so the differential system works correctly.
Matching The Differential Type
Open differentials, limited-slip units, and other drivetrain layouts use different internal parts. Before replacement, confirm the differential carrier design and the exact gear package it accepts.
Why Gear Ratio And Compatibility Matter
The gear ratio affects how the ring gear and pinion work with the rest of the drivetrain. Replacement gears must match the original setup, or you risk noise, poor fitment, or early wear.
Custom And Prototype Applications
Engineers may use a custom spider gear in prototype development or special drivetrain builds.
In these cases, fit, material choice, and load capacity matter as much as size and tooth shape.
