You probably use machines every day that rely on parts you never see. The squirrel-cage rotor sits inside many of those motors—fans, pumps, factory equipment—and quietly turns electrical energy into steady spinning motion.
Basically, its job is to grab the stator’s rotating magnetic field, make currents flow in the rotor bars, and crank out the torque that spins the shaft.
If you know how this works, you’ll start to see why these motors last so long and don’t need much attention. Let’s dig into how the cage’s shape, the materials, and how it all comes together really affect performance, efficiency, and how tough the motor is.
Core Function and Operation of Squirrel Cage Rotor
The squirrel cage rotor takes electrical input and spins a shaft using currents that flow in solid metal bars. It’s the part that sets the motor’s torque, affects how it starts, and changes how the rotor reacts at different speeds.
Role in Induction Motor Torque Production

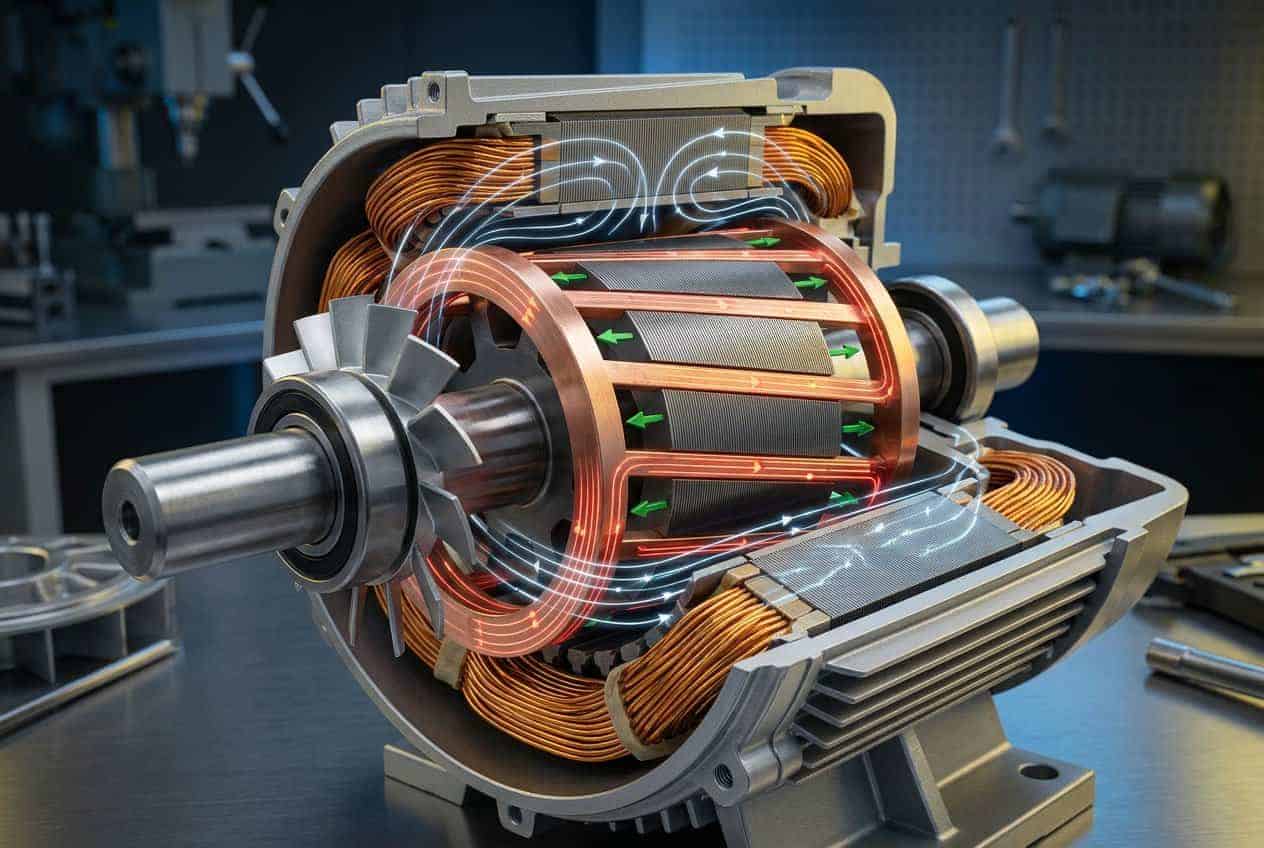

You get torque when current flows in the rotor bars and those currents push against the stator’s magnetic field. The stator winding creates a magnetic field that spins around; that moving field makes currents show up in the squirrel-cage bars.
Those currents run along the bars and into the end rings, making loops that carry a lot of current at low voltage. The currents make their own magnetic fields, which push back against the stator’s field.
That push creates force on the rotor bars and makes the shaft turn. The amount of torque depends on the shape of the bars, what they’re made of (usually aluminum or copper), and how much resistance the cage has.
If you use thicker bars, you get lower resistance and better efficiency at low slip. But if you want more starting torque, shaped or double cages work better.
Interaction with Rotating Magnetic Field
Picture the stator field spinning at its own speed—called synchronous speed. The rotor always spins a little slower, so there’s a difference. That gap in speed causes the rotor to see a changing magnetic field, which actually creates voltage in each bar by electromagnetic induction.
Those voltages drive big currents in the shorted cage, and the way those currents interact with the fields makes the rotor and shaft turn. Manufacturers often skew the rotor bars a bit to smooth out the torque and cut down on noise when the bars pass the stator slots.
Steel laminations in the rotor core help guide the magnetic flux and keep eddy-current losses down.
Importance of Slip in Rotor Function
Slip is just the percentage difference between the stator’s speed and how fast the rotor spins. You need slip, or else you get zero induced current and no torque at all.
A little bit of slip gives you steady torque and decent efficiency when the motor runs under normal loads. If the slip goes up, you get more current and more torque—up to a point—but you also get more heat and losses.
Slip decides how much starting torque you get and how the motor responds to loads. When the rotor is stopped, slip is 100%, and the induced frequency matches the power line frequency. At that moment, the shape of the bars and the skin effect play a big role in how much current and torque you get.
The rotor design tries to balance low starting current, enough starting torque, and not too much running loss for whatever job the motor does.
Differences from Wound Rotor Designs
Squirrel-cage rotors use solid bars that are always shorted together. Wound rotors, on the other hand, have insulated windings you can reach from outside the motor.
That difference changes how you control starting torque and speed. With a wound rotor, you can add resistance from outside to tweak starting torque and keep inrush current down. You can’t do that with a squirrel-cage motor—unless you use special starters or electronics.
Wound rotors work well if you need variable speed or a ton of starting torque, but they’re more complicated and need brushes and slip rings. Synchronous machines might have a small squirrel-cage or amortisseur winding to help the rotor catch up to speed and stay stable.
Most of the time, though, the simple squirrel-cage rotor wins out for industrial AC motors. It gives you reliable starting torque, barely any maintenance, and steady performance.
Design Features and Performance Characteristics
Here’s where you see how the rotor’s design really shapes torque, speed, and where the motor fits in the real world. You’ll notice which parts control resistance, heat, and strength—and how that plays out in actual machines.
Rotor Construction and Key Components
A squirrel cage rotor uses a stack of thin steel laminations with slots cut around the edge. Copper or aluminum bars slide into those slots.
Heavy end rings short all the bars together, making a cage that carries the current. The lamination stack keeps eddy current and hysteresis losses down.
A shaft runs through the middle and sits in bearings in the motor frame. The material you pick for the bars matters—a copper bar cuts resistance but costs more than aluminum.
Shorting rings and the core handle heat and stress. Sometimes you’ll see extra bars or amortisseur windings to help during weird startup conditions.
The shape of the slots and how deep the bars sit change how current flows, which tweaks torque and losses.
Speed Regulation and Torque Behavior
Rotor resistance and how the stator and rotor fields lock together set the torque and slip. If you add load, slip goes up, more current flows in the rotor, and you get more torque—until you hit the limit.
You set speed by the supply frequency; a three-phase induction motor usually runs just below synchronous speed. If you use a variable frequency drive (VFD), you can dial in the speed and keep torque up even at low speeds.
Torque can bounce around if the bar shape or slot design isn’t right. Narrow slots and skewed bars help cut down on torque ripple and cogging.
Low-speed torque is limited by rotor resistance. Adding resistance (or using double-cage rotors) gives you more starting torque, but you lose some efficiency.
Starting Current and Performance Limitations
A squirrel cage motor pulls a lot of current when it starts—usually five or six times what it draws at full load. Those big currents can cause voltage dips and extra heating in the supply if you don’t use a soft starter.
You can keep starting current in check with VFDs, star-delta starters, or autotransformer starters. If you bump up rotor resistance, you lower starting current but lose efficiency and power factor during normal running.
High starting torque designs usually trade off some efficiency for better startup. Other limits include top speed, how much heat the bars and rings can handle, and stress on the shaft and bearings during startup.
Good steel laminations help keep core losses down. If the lamination isn’t great, you get more eddy current and hysteresis loss, especially when the magnetic field changes a lot.
Impact of Design on Industrial Applications
When you pick a rotor design, you shape where the motor will really shine. If you go for robust construction, sealed bearings, and those standard NEMA frame sizes, you’ll probably see the best results in conveyor systems or HVAC setups—especially where you care about reliability and swapping parts quickly.
Motors with solid efficiency and low maintenance just seem to work well for centrifugal pumps and fans. For heavy-duty conveyors or crushers, you might run into situations where you want higher starting torque or less current at startup. Designers often get around this by tweaking the cage bar design, using double-cage rotors, or just adding VFDs.
Large installations bring up concerns about power factor and how the system handles reactive loads. Squirrel cage motors keep things simple and don’t demand much maintenance, which helps cut down manufacturing and lifecycle costs. Still, they draw a lot of current when starting and don’t offer great low-speed control unless you add a VFD—so, if you need precision, pairing them with modern drives just makes sense.
